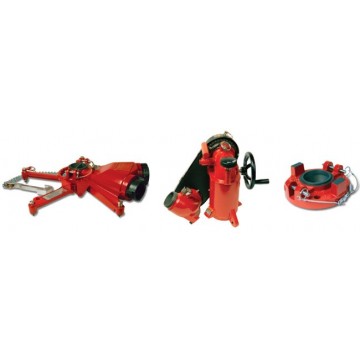

Akron Brass Style # 3433 Apollo Hi-Riser Monitor Dual Inlet

Product ID: #ABM3433

Akron Brass Apollo Hi-Riser Dual Inlet Portable and Deck Monitor Includes a dual inlet ground base, lift off and direct mount Flow Rates.
• Ground 3030Lpm
• Deck 4800Lpm
The monitor features:
• A hand wheel elevation control from 90° above to 45°
• Below horizontal with an elevation safety stop 35°
• Above horizontal;360°
• Continuous rotation in the deck mode flowing 4800 lpm and 180°
• In the portable mode flowing 3030 lpm;
• Horizontal locking mechanism and stops to prevent accidental over-rotation;
• A full 3" waterway with cast-in turning vanes in each elbow and a 3" direct mount flange.

Availability : In stock.

Download BrochureTechnical Sheet 1Technical Sheet 2
Product Details
Size 387mmDH x 370mmW x 473mmD
Weight 14.1 Kg
Manufacturer Akron Brass Company

Description

Akron 3433 Apollo™ Hi-Riser™ Dual Inlet Portable and Deck Monitor Portable ground base monitor with two 2 1⁄2" or 3" clappered swivel inlets. The Apollo base has folding legs with no locking mechanism required to keep legs in place. While in the deck mode, the unit must have the ability to pivot to a position 24"" above the base of the flange. The monitor also includes a pressure gauge, carry handle, grease fittings, safety chain, hardened steel ground spikes and Pyrolite construction.
