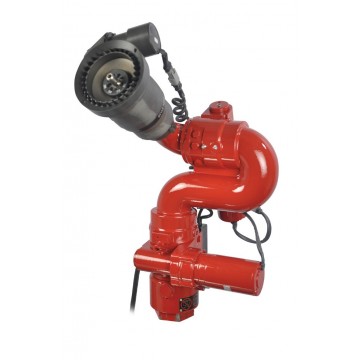

Akron Brass Style # 3462 Forestry Monitor

Akron Brass 3462 Forestry Bumper Monitor The 1140 lpm rated monitor is to be an all electric single waterway monitor constructed of lightweight Pyrolite. The monitor features cast-in turning vanes in each elbow. The monitor has fully enclosed motors and gears with manual overrides for both horizontal and vertical rotation and may be operated simultaneously. The Akron Forestry monitor is not to exceed 13 3/16” high and 11 9/16” wide. The vertical travel is from 45° below to 90° above horizontal with adjustable stops at -20° and +45°. The horizontal rotation is 320° with adjustable stops at ±90°. The control system electronics are to be integrated with the monitor wiring harness. The control system shall use sealed, locking connectors for the monitor and nozzle motors. The two additional sealed, locking connectors are supplied for input power/electric valve control and J1939 CAN bus interface. A sealed USB connector enables the updating control system firmware. All electrical connectors shall be minimum IP65 rated. The operator interface consists of a CAN bus compatible joystick which will provide up, down, right, left, fog, and stream control of the monitor with the joystick having a trigger switch to control an optional electric discharge valve.
