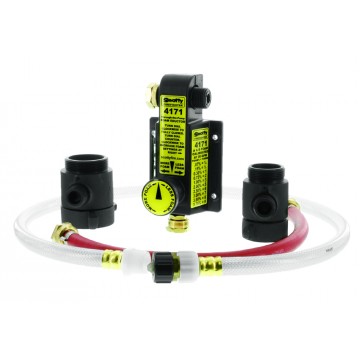

Scotty 4171 "Through-The-Pump" Foam Eductor and Mixer

Product ID: #SFFE4171

Features



• Educts foam concentrate into hose lines through a pumps suction and discharge sides, also known as an " Around-The-Pump" System
• Will educt concentrates at percentages of 0% to 3.75% at flow rates from 15 to 125 GPM at 100 PSI
• Maximum operating pressure of 300 PSI
• Includes an 18" Pressure Hose and a 48" Foam Pick-up Hose
• Includes 1x 1-1/2" Cast Aluminium Connecting Tee and 1x2" Cast Aluminium Connecting Tee

Availability : In stock.

Download BrochureTechnical Sheet 1Technical Sheet 2
Product Details
Size -
Weight 0 Kg
Manufacturer Scotty Fire Fighter

Description

The 4171 Foam Eductor/Mixer is a very simple unit used to educt foam concentrate into hose lines. It is mounted between the discharge and suction side of a pump (see diagram below). For use on portable forestry pumps or fitted permanently to skid units, the 4071 is a simple and effective way for fire fighters to add a foam capability to their equipment. The unit is adjustable, permitting foam percentages of 0.1 to 1.25% to be educted at flow rates of 15gpm to 150gpm. A 4071 includes the eductor, pressure hose and pick-up hose. A 4171KIT includes the eductor, pressure hose, pick-up hose and two connecting aluminum tees: a 1-½” and a 2”.
