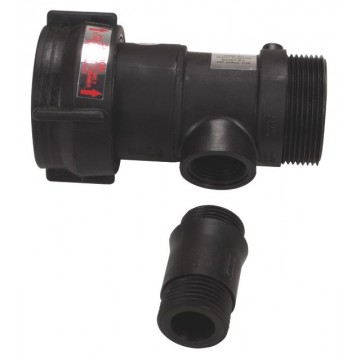

Scotty Foam Mixers & Eductors # 4060

Product ID: #SFFE4060

4060 Scotty Foam Eductor
Designed to be match with Scotty Air Aspirating Nozzles
• (5) Flow Rates: 68.19, 136.38, 227.30, 318.22 & 431.87 Lpm
• Factory set for 1% eduction ratio
• Generates 30 inches of vacuum at pressures as low as 30psi

Availability : In stock.

Download BrochureTechnical Sheet 1Technical Sheet 2
Product Details
Size -
Weight 0 Kg
Manufacturer Scotty Fire Fighter

Description

4060 Scotty Foam Eductor Scotty 4060 Foam Eductors are manufactured in five fl ow rates; 15, 30, 50, 70and 95 GPM. They are designed to be matched with Scotty Air Aspirating Nozzles of the same flow rate. The standard eductor is factory set for a fixed 1% eduction ratio. Eductors are available, upon request, for a .5% or 3% eduction ratio. All eductors will generate 30 inches of vacuum at pressures as low as 30 psi, making the Scotty eductors extremely effi cient. Mounted as an in-line eductor on a pump the 4060 is restricted to a maximum hose length of 150 feet. With a Back-pack supplying the foam concentrate, the 4060 Eductor can be mounted to the end of a fire hose.
