Scotty "Through-the-Pump" Foam Eductor/Mixer # 4071

Product ID: #SFFE4071

4071 Scotty "Through-the-Pump" Foam Eductor/Mixer

Adjustable Unit - permitting various foam percentages

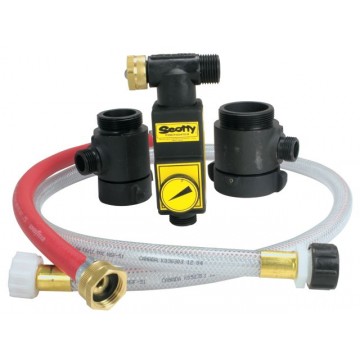

Includes:
• Eductor
• Pressure hose and pick-up hose. A
• Two connecting aluminum tees: a 1-½” and a 2”.

Flow Rates 15gpm - 150gpm / 68.19Lpm - 681.913Lpm

Availability : In stock.

Download BrochureTechnical Sheet 1Technical Sheet 2
Product Details
Size -
Weight 0 Kg
Manufacturer Scotty Fire Fighter

Description

4071 Scotty "Through-the-Pump" Foam Eductor/Mixer The 4071 Foam Eductor/Mixer is a very simple unit used to educt foam concentrate into hose lines. It is mounted between the discharge and suction side of a pump (see diagram below). For use on portable forestry pumps or fitted permanently to skid units, the 4071 is a simple and effective way for fire fighters to add a foam capability to their equipment. The unit is adjustable, permitting foam percentages of 0.1 to 1.25% to be educted at flow rates of 15gpm to 150gpm. A 4071 includes the eductor, pressure hose and pick-up hose. A 4071KIT includes the eductor, pressure hose, pick-up hose and two connecting aluminum tees: a 1-½” and a 2”.
