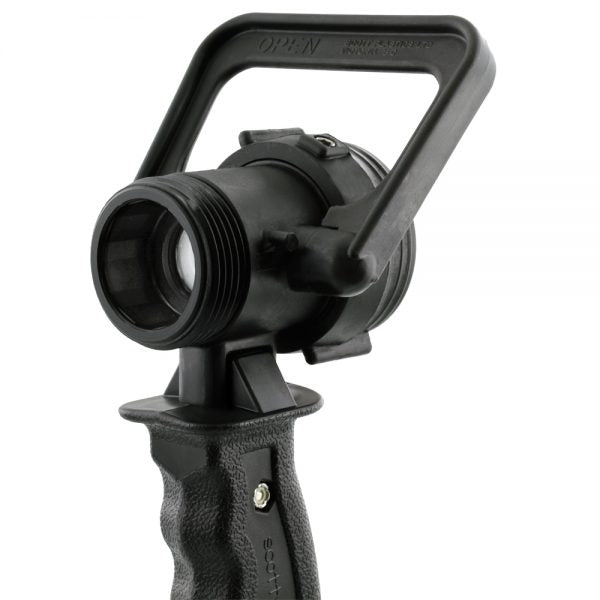

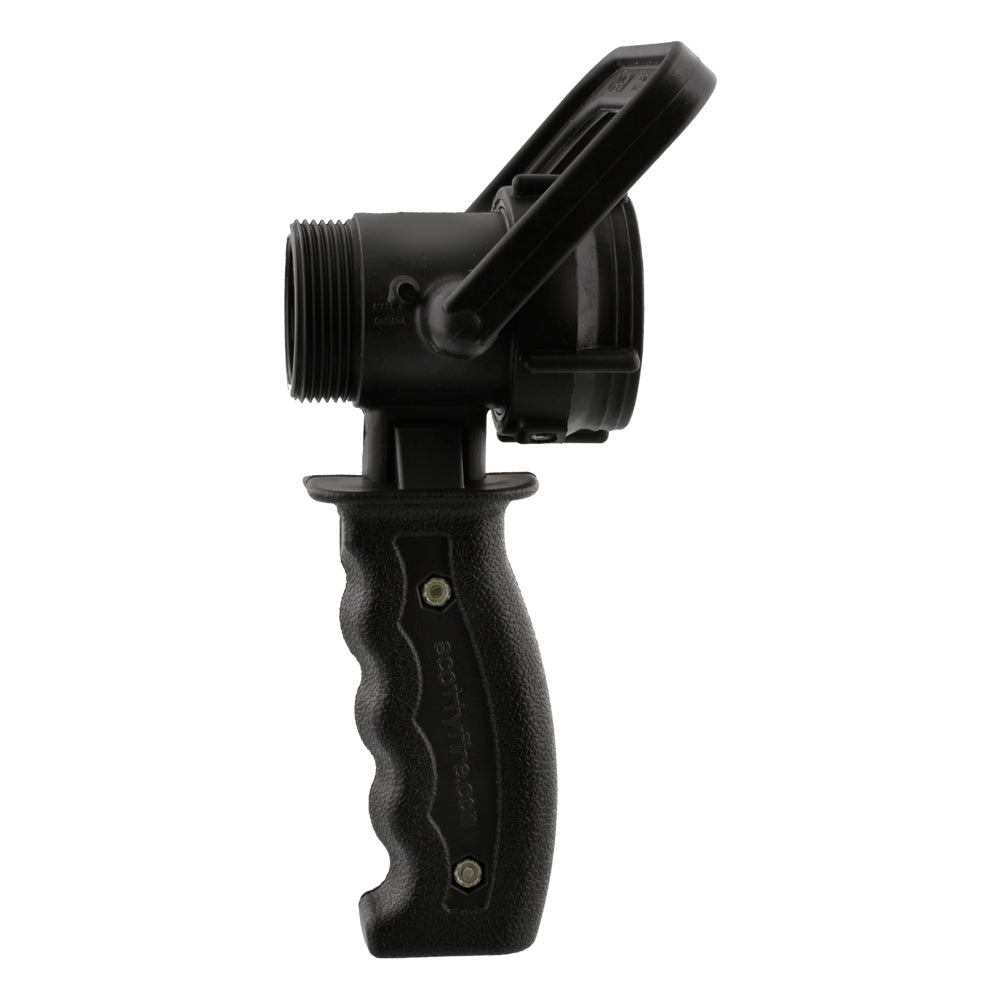

Scotty Firefighter Pistol Grip Ball Shut Off

Lightweight, ergonomic hose-line control for professional firefighting operations.

The Scotty Firefighter Pistol Grip Ball Shut-Off is a lightweight, easy-to-handle ball valve designed to provide firefighters with positive control of water flow at the end of the hose line.

Manufactured from tough, corrosion-resistant glass-reinforced polymer, the Scotty 4080 combines durability with low weight, making it particularly suited to bushfire, forestry, rural fire and general firefighting applications.

Its distinctive pistol-grip design features finger-grooved hand grips for improved comfort and control, providing a secure grip during extended firefighting operations.

Lightweight & Ergonomic

Reducing weight at the working end of a hose line can improve handling and help reduce operator fatigue, particularly during prolonged firefighting operations.

The Scotty 4080 uses lightweight glass-reinforced polymer construction to provide a durable shut-off valve without the unnecessary weight associated with many traditional metal components.

The moulded pistol grip and finger grooves provide a comfortable, positive hand position for easy operation and hose-line control.

Versatile Hose-Line Configuration

The Scotty Pistol Grip Ball Shut Off connects directly to 38 mm fire hose or 25 mm fire hose (Requires 4083 38 x 25 adaptor)

When used with a compatible 4083 reducer, the shut-off can also be configured for use with a 25 mm (1") hose line, providing additional flexibility for forestry and bushfire firefighting applications.

This modular configuration allows fire services to adapt the shut-off to different hose-line requirements while retaining the same familiar pistol-grip control.

Durable, Corrosion-Resistant Construction

The body is manufactured from tough glass-reinforced polymers, providing a lightweight and corrosion-resistant alternative to conventional metal shut-off valves.

This makes the 4080 particularly well suited to demanding firefighting environments where equipment is regularly exposed to water, dirt and outdoor operating conditions. Replacement handle grips are available in multiple colours, allowing equipment to be identified or colour-coded according to operational requirements.

Available grip colours include:

• Black (Standard)
• Blue
• Yellow

Key Features

• Lightweight pistol-grip ball shut-off valve
• Designed for professional firefighting applications
• Ergonomic finger-grooved hand grip
• Positive hose-line water flow control
• Tough glass-reinforced polymer construction
• Corrosion-resistant body
• Connects directly to 38 mm fire hose
• Can be adapted for 25 mm hose using a Scotty 4083 reducer BSP thread
• Replaceable handle grips
• Black, blue and yellow grip options
• Well suited to bushfire, forestry, rural and general firefighting applications

Product Specifications

Manufacturer: Scotty Firefighter
Product: Pistol Grip Ball Shut Off
BSP Model: 4080B
Standard Hose Connection: 38 mm)
Optional Hose Configuration: 25 mm (1") with 4083 reducer
Available Threads: BSP
Body Construction: Glass-reinforced polymer
Grip Style: Finger-grooved pistol grip
Available Grip Colours: Black / Blue / Yellow
