SR Fire P10 Firefighting Pump

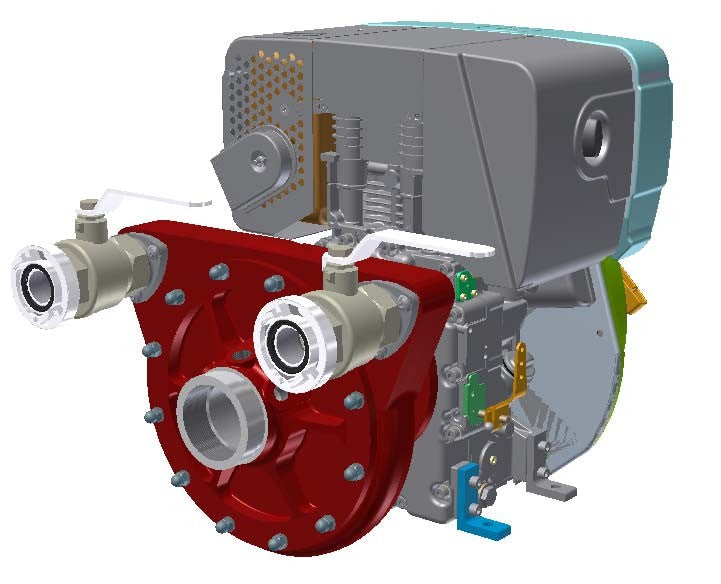

Introducing the SRP-10, a lightweight and high-performance portable firefighting pump designed using the latest CAD technology. The P10 is ideally suited for utility firefighting and is perfect for vehicle mounting or installation on a slip-on unit or trailer equipped with a small tank. With the capability to deliver pressures up to 1,200 kPa and flow rates exceeding 950 L/min, this pump is engineered for efficiency and reliability in critical situations.

Key Features:

• Latest CAD-Designed Waterways: Ensures efficient water flow and minimizes turbulence.
• Dual 38 mm Discharge Outlets: Provides versatility for multiple discharge configurations.
• Bronze Impeller: Offers durability and corrosion resistance for long-lasting performance.
• Hydraulically Balanced Design: Enhances stability and reduces wear on components.
• Carbon/Ceramic Stainless Steel Mechanical Seal: Ensures reliable sealing and reduces leakage.
• Replaceable Bronze Wear Rings: Extends the life of the pump and minimizes maintenance costs.
• Four-Position Discharge Outlets: Allows for flexible water discharge options.
• Lightweight, Heat-Treated Aluminium Alloy Body: Reduces overall weight while maintaining strength and durability.
• Integrated Delivery Manifold: Simplifies installation and enhances performance.
• Direct Close-Coupled Engine Connection: Improves efficiency and reduces potential points of failure.

Pump Specifications:

• Pump Type: Single-stage centrifugal
• Suction: 65 mm BSP female / Victaulic for easy connections
• Priming Port: 1/2 in BSP for quick setup
• Auxiliary Ports: Optional 3/8 in BSP for added flexibility
• Discharge:
  • Standard: 2 x 38 mm BSP male
  • Optional: 2 x 25 mm BSP male
• Maximum Pressure: Up to 1,200 kPa, suitable for various firefighting operations
• Flow Rate: Over 950 L/min, ensuring efficient water delivery
• Hydrostatic Test: Twice the operating pressure to guarantee safety and performance
• Pump/Engine Mass: 60 kg (indicative) for easy transport and installation

Mounting Options:

• Tubular Wraparound Roll Frame: Provides robust protection and easy handling.
• Aluminium Channel Mounting Frame: Lightweight and durable for various mounting configurations.

Instruments & Controls:

The SRP-10 comes equipped with a remote or fixed instrument panel featuring:

• Compound gauge for overall pressure monitoring
• Pressure gauge for real-time pressure readings
• Tachometer to monitor engine speed
• Engine start button for convenient operation
• Oil-pressure warning/gauge for engine health checks
• Temperature warning/gauge to prevent overheating
• Vernier throttle for precise engine control
• Stop control for quick shutdown
• Engine hour meter for maintenance scheduling
