Brimstone EV Fire Suppressor Mister™
Product SKU: FP-WM-KIT

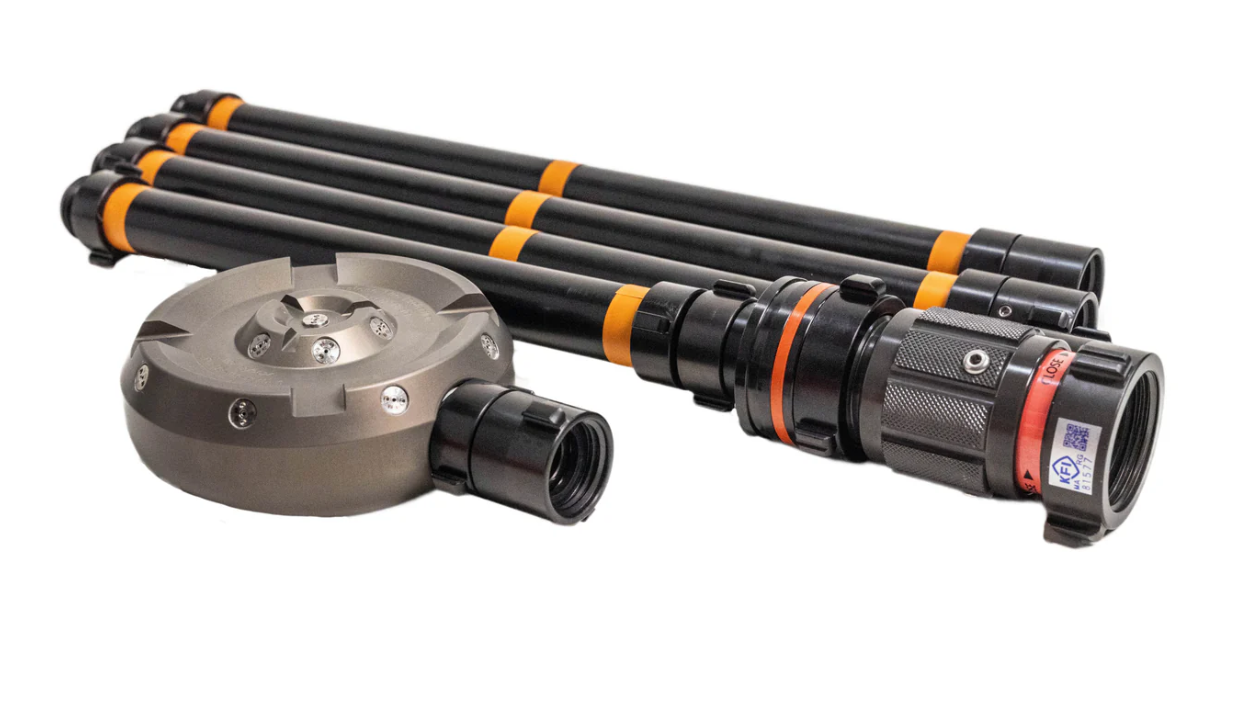

The Brimstone EV Fire Suppressor Mister™ is a powerful, precision-engineered firefighting tool designed to enhance cooling and suppression capabilities during lithium-ion battery fire emergencies. Our Mister delivers a 10 38 lpm low-flow water mist spray with droplets sized at less than 1,000 microns directly to the vehicle’s undercarriage. Tests validate that the Mister’s low-flow rate is as effective as high-flow models, while conserving water resources and reducing toxic runoff. With a low-profile head measuring only 570 mm tall, it easily fits under most vehicles and features 15 omni-directional nozzles. Built for efficiency, durability, and ease of use, the Brimstone EV Fire Suppressor Mister is an essential addition to any lithium-ion battery fire response toolkit.
How It Works:
The Mister is designed to be used in conjunction with an EV blanket during an electric vehicle fire, creating a comprehensive EV Fire Suppressor System™. Rapidly covering a vehicle with an EV blanket, especially with a proper ground seal, provides a measure of containment and protection by depriving the fire of free oxygen. This suppression of flames instantly lowers the temperature and decreases smoke volume.
Following this, the Mister delivers water directly to the vehicle's undercarriage to cool the chassis, pulling heat away from the battery modules to effectively shut down a thermal runaway event.
Specifications:
-
Low Profile Clearance: 570 mm tall at the Mister head
-
Assembled Length: 2.3 m
-
Approx. Weight: 5.5 kg
-

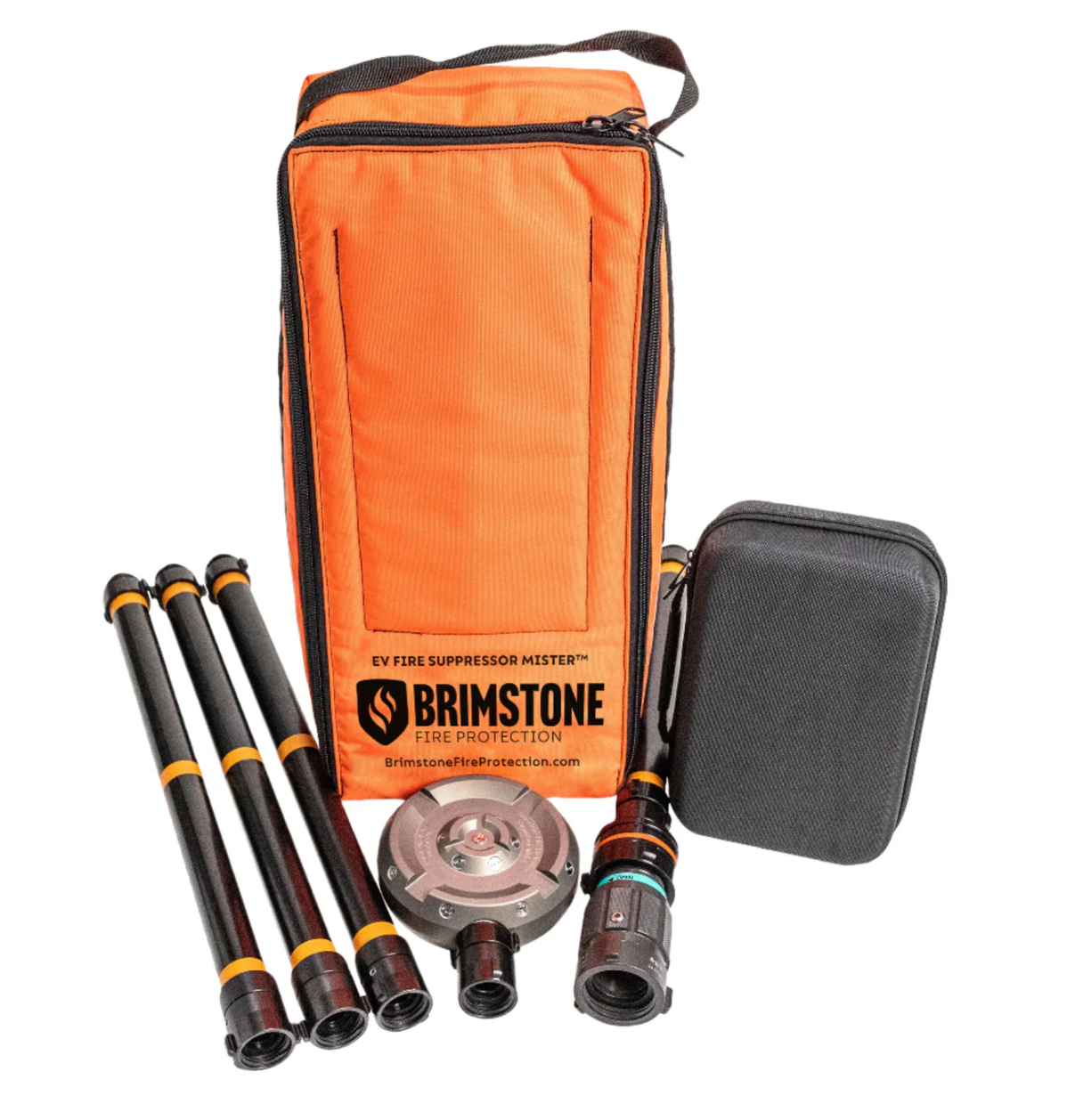

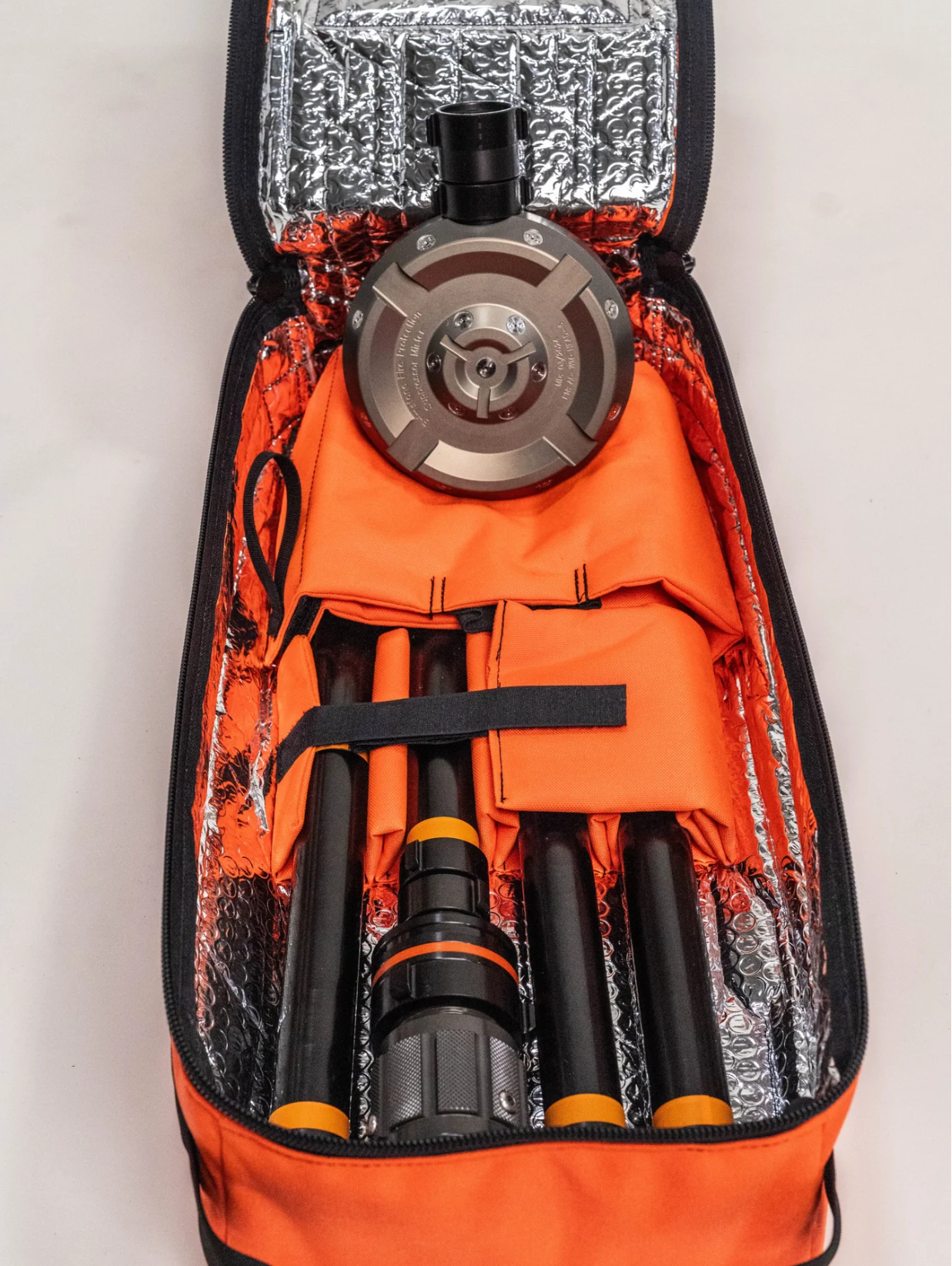

Carrying Case Approx. Size: 250 cm x 530 mm x 140 mm
Testing and Technical Information:
With 100 psi at the Mister head, a 10 38 lpm low-flow water mist spray effectively cools the chassis by pulling heat away from the battery modules to halt a thermal runaway event. Tests confirm that the Mister’s low-flow rate maintains effectiveness similar to high-flow models while conserving water resources and reducing toxic runoff. Additionally, the fine mist can help mitigate and dampen vapor cloud ignitions that may occur underneath the EV blanket.
