Brimstone Fire Suppression for Electric Vehicles - Combo Kits

Brimstone EV Blanket Combo Kits

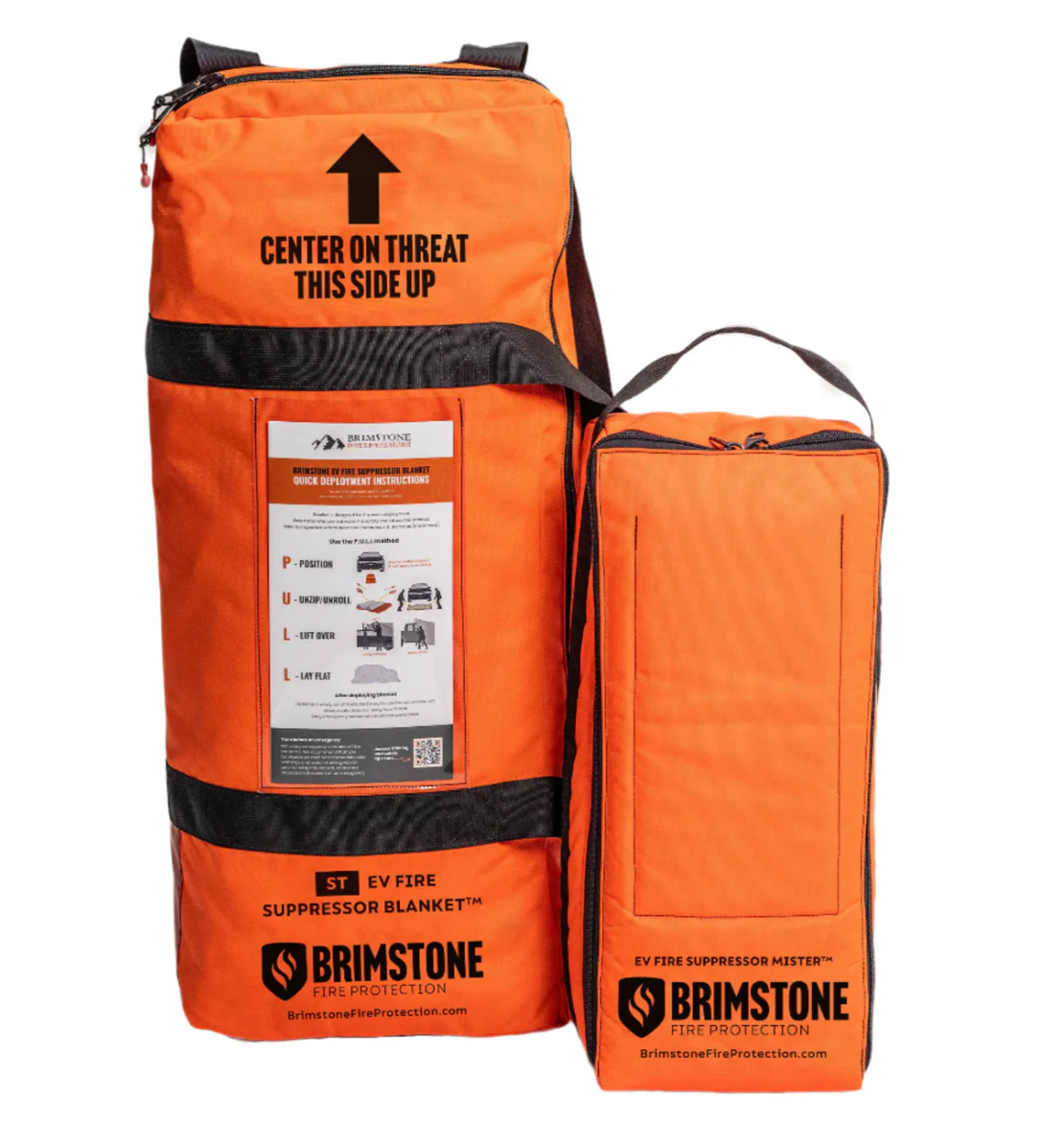

The Brimstone EV Fire Suppressor System ST™ is a comprehensive combo kit that includes both the Mister and the Standard EV Blanket. While each component—the EV blanket and the Mister—can operate independently, together they form an integrated solution to address thermal runaway events during lithium-ion battery fire emergencies. The rapid deployment of the EV blanket over a vehicle offers containment and protection, while the Mister cools the battery modules and helps prevent and manage vapor cloud ignitions.

Key Features

Brimstone EV Fire Suppressor Blanket STANDARD™:
This blanket is engineered to fit most automobiles, crossover SUVs, and warehouse forklifts. It extinguishes fires by suffocating flames, reducing temperatures, and limiting smoke through oxygen deprivation.

Brimstone EV Fire Suppressor Mister™:
The Mister delivers a low-flow water mist spray at 38 lpm, with droplets less than 1,000 microns in size for efficient firefighting. It effectively cools the undercarriage with its 15 omni-directional nozzles, conserving water and minimising toxic runoff. The low-profile Mister head, standing at only 5.7 cm, easily fits under most vehicles.

This combination provides a robust solution for lithium-ion battery fire suppression, merging advanced misting technology with a durable, high-performance fire blanket to ensure maximum protection.

Note: For optimal safety, it is recommended to use this system with Brimstone EV Fire Suppressor Extendable Poles (sold separately) to maintain a safe distance from the fire.

Underwriters Laboratory Fire Safety Research Institute Update: Undercarriage systems and EV blankets are now two of the four recommended solutions. Read more here.

International Patent Pending
All Brimstone products are manufactured in ISO 9001:2015 certified facilities.
Proudly sewn in the USA.

Brimstone offers two Combo Kits:

Combo Standard Kit (A) — Part # BRP1.FP-BL-ST-WM-EV-C1

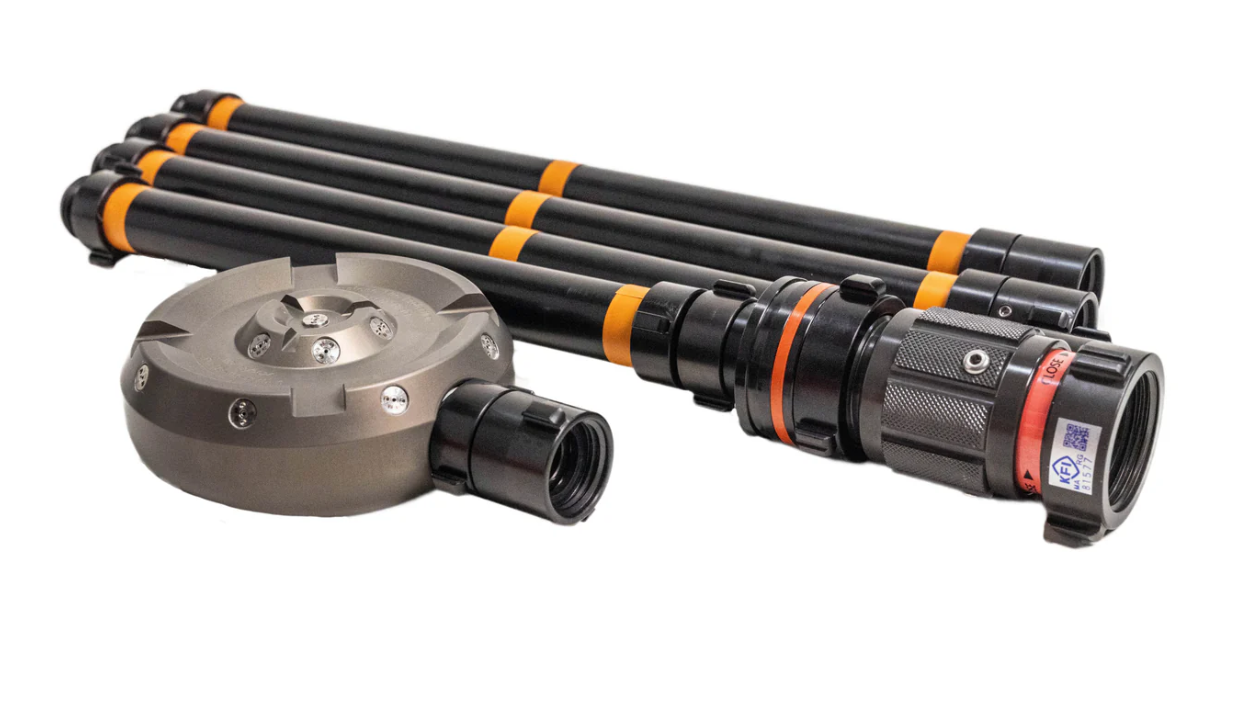

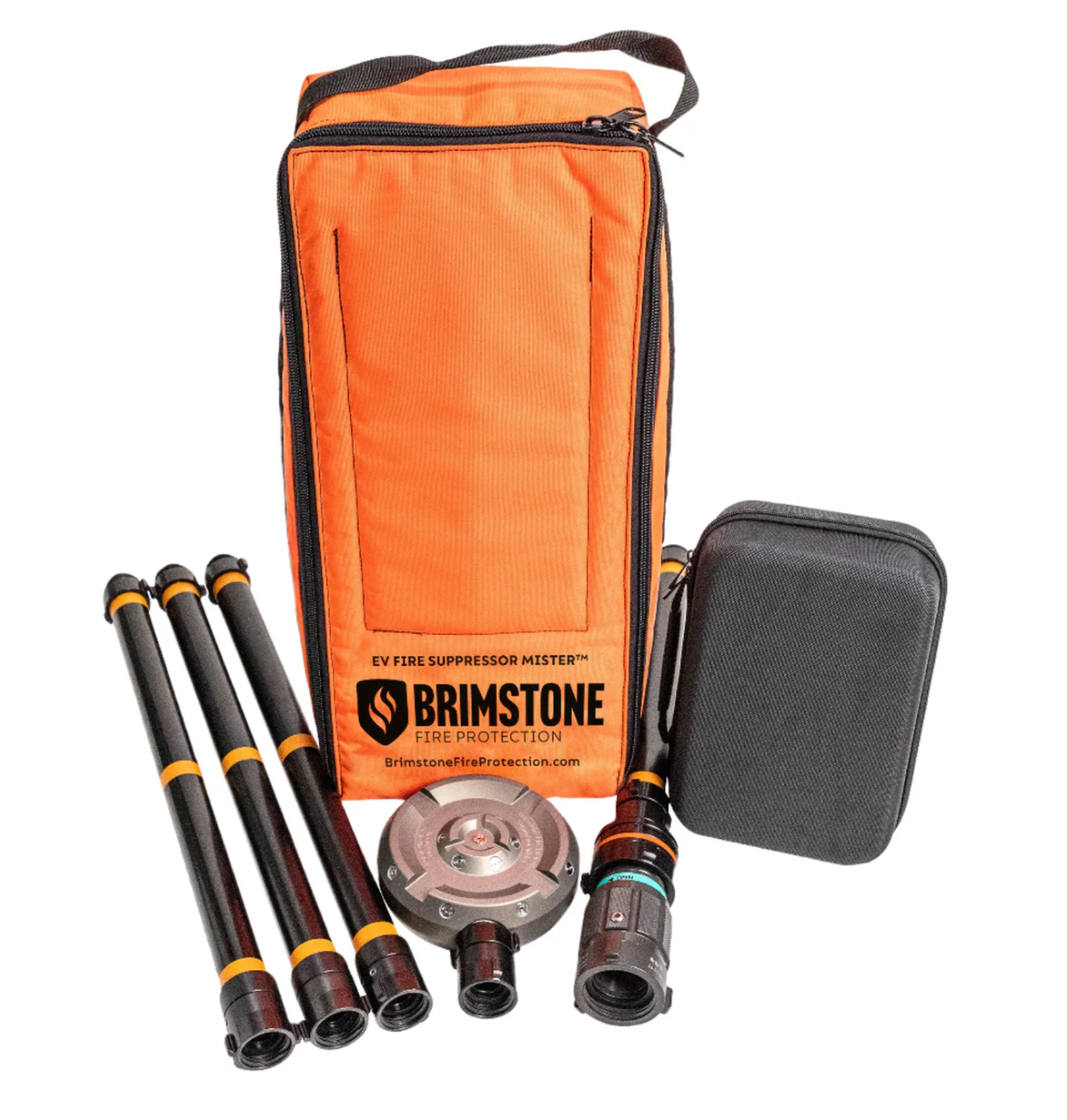

EV Fire Suppressor Mister (PN: FP-WM-KIT)

• (1) 150 mm diameter "no tip" Mister spray head with 15 individual omni-directional spray mist nozzles
• (1) Valve pipe length
• (3) Standard pipe lengths
• (1) In-line mesh / filter sleeve
• Carrying bag
• Zippered hard case (for extra gaskets, in-line screens, and/or spanner wrenches)

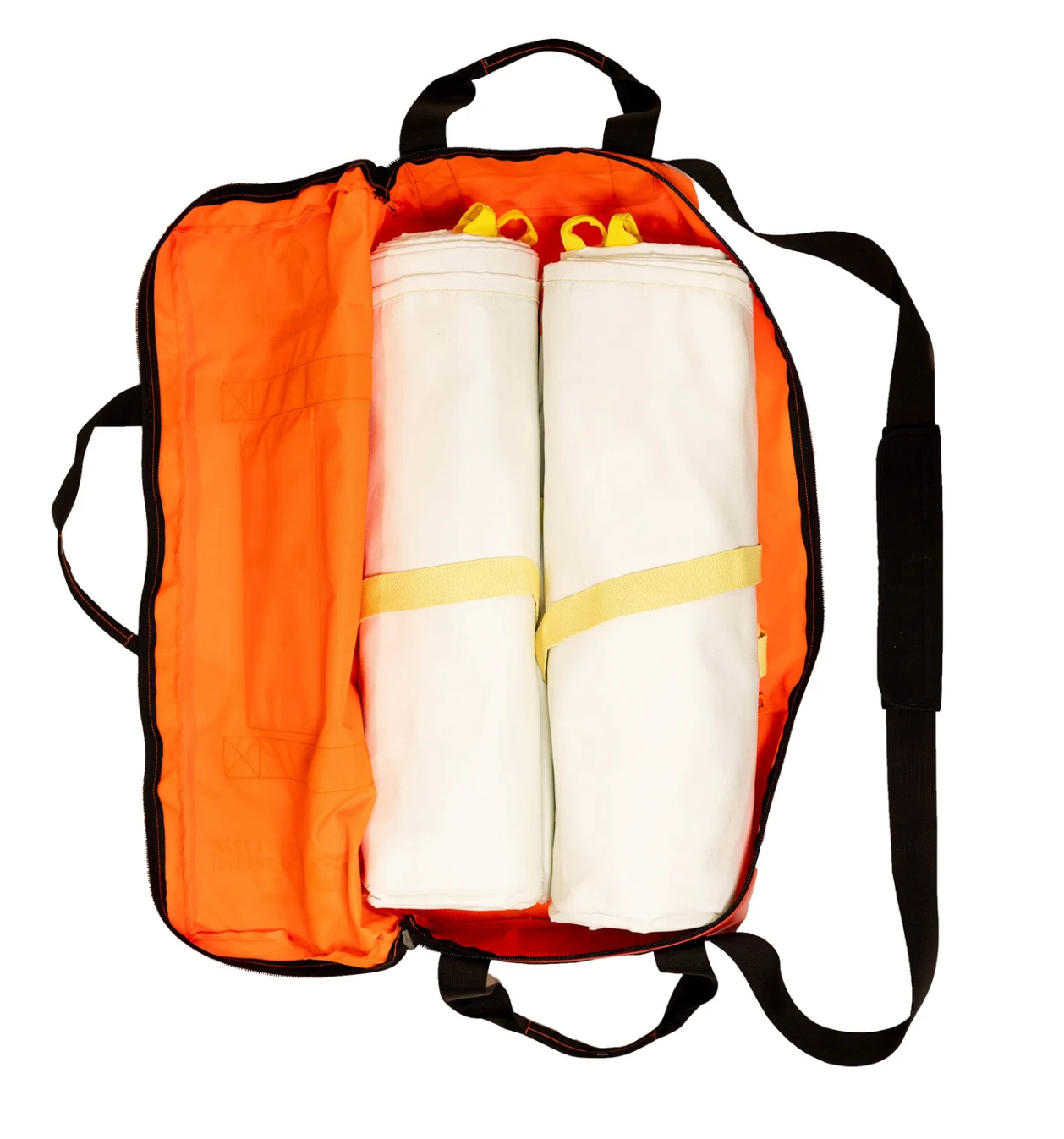

Standard EV Fire Suppressor Blanket (PN: FP-BL-ST-EV-K1)

• 1 EV Fire Suppressor Blanket ST (Standard) 6 x 10 Mtr
• Carrying Bag
• Cinch Strap
• Step-by-step instruction card on the outside of the bag
• Note: Extendable Poles are NOT included with the standard blanket, but may be purchased separately

Weight – Mister Kit: 5.5 Kg | Standard Blanket: 26 Kg

Combo XL EV Kit (B) — Part # BRP1.FP-BL-ST-WM-EV-C1

EV Fire Suppressor Mister (PN: FP-WM-KIT)

• (1) 150 mm diameter "no tip" Mister spray head with 15 individual omni-directional spray mist nozzles
• (1) Valve pipe length
• (3) Standard pipe lengths
• (1) In-line mesh / filter sleeve
• Carrying bag
• Zippered hard case (for extra gaskets, in-line screens, and/or spanner wrenches)

XL EV Fire Suppressor Blanket (PN: FP-BL-XL-WM-EV-C1)

• 1 EV Fire Suppressor Blanket XL (X-Large) 7.6 x 10 Mtr
• Carrying Bag
• A pair of Extendable Poles
• Cinch Strap
• Step-by-step instruction card on the outside of the bag

Weight – Mister Kit: 5.5 Kg | Standard Blanket: 40 Kg
